Description
SKU: CSX901-9500

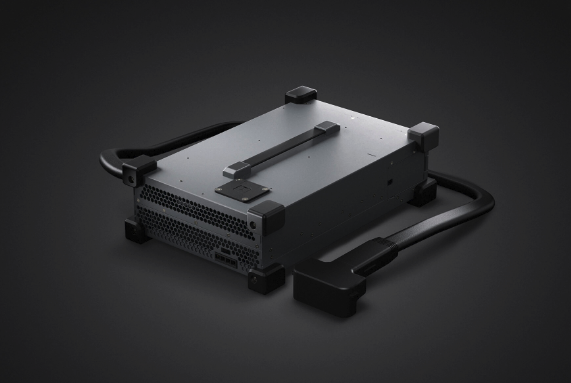

C10000 Intelligent Power Supply
Single-phase power input
9000 W fast charging
Adaptive power protection
1.5 m charging cable
Details:
| Model Number | CSX702-9500 |
| Dimensions | 400 × 266 × 120 mm |
| Weight | Approx. 11.4 kg |
|
Input/Output
|
Input (Main): 220–240 VAC, 50/60 Hz, 24 A MAX |
| Input (Auxiliary): 220–240 VAC, 50/60 Hz, 24 A MAX | |
| Output: 59.92 VDC MAX, 175 A MAX, 9000 W MAX | |
| Input (Main): 100å–120 VAC, 50/60 Hz, 16 A MAX | |
| Input (Auxiliary): 100–120 VAC, 50/60 Hz, 16 A MAX | |
| Output: 59.92 VDC MAX, 60 A MAX, 3000 W MAX | |
| Charging Time | Fully charges a battery in 9 to 12 minutes (DB1560 Intelligent Flight Battery) |
| Protection Functions | Over-voltage, over-charge, under-voltage and over-temperature protection |
| Charging Safety | AC wire protection, power wire protection, and charge connector protection |
