Description
SKU: CSX901-12000

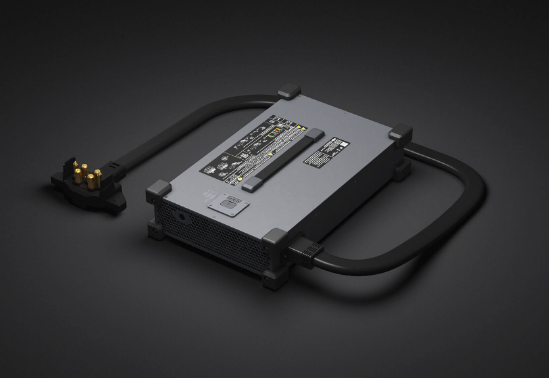

C12000 Intelligent Power Supply
Tri-phase power input
12000 W fast charging
Adaptive power protection
1.8 m charging cable
Details:
| Charger Model | CSX901-12000 |
| Dimensions | 456 mm x 291 mm x 107 mm |
| Weight | 13.13 kg |
| Input Voltage | Three-phase AC input: 175 – 520 V Single-phase AC input: 200 – 264 V |
| Output Voltage | 62 V |
| Rated output current | 194 A |
| Rated Power | 12000 W (three-phase 380 V input) 3000 W (single-phase 220 V input) |
| Recharge Time | 8 – 9 minutes (DB2160 Intelligent Flight Battery, 30% – 95% charge) |
| Protection functions | Over-temperature, over-voltage, under-voltage, short circuit, fan stall, and other protection functions |
| Operating Temperature | 0 – 40 C |
| Output Channels | 1 |
| Compatible with Intelligent Flight Battery | DB1580 / DB2160 Intelligent Flight Battery |
