Description

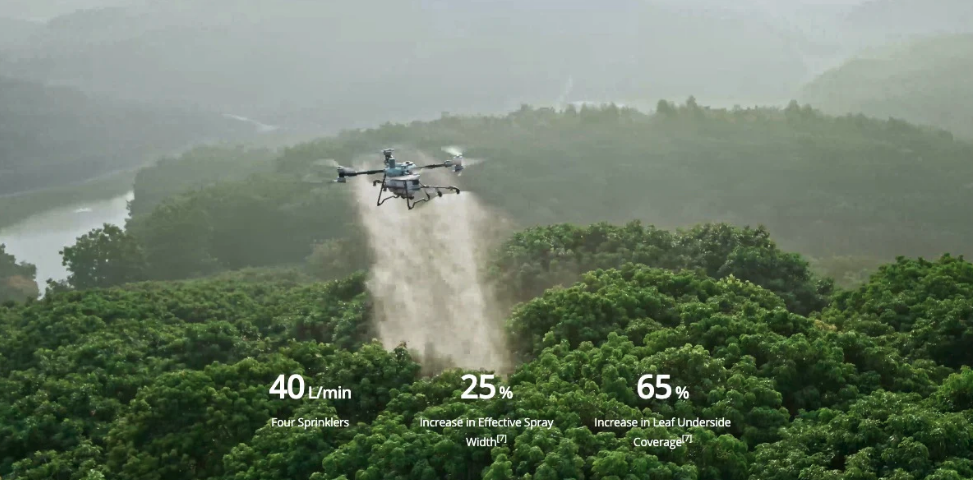

DJI Agras T100 Water-Cooled Mist Sprinkler

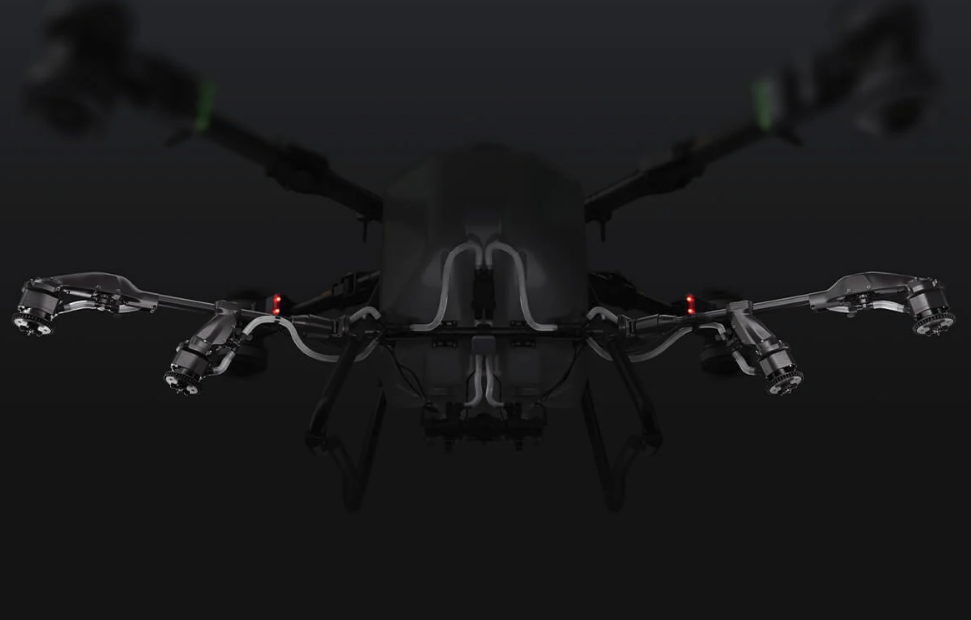

Fine droplets as small as 50 μm[23] penetrate canopies for comprehensive leaf coverage. A new liquid flow path helps dissipate dual centrifugal motor heat for durability and longevity.

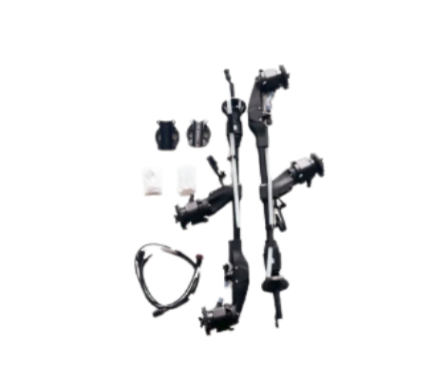

Rear Four Sprinklers Array
It expands the spray width for orchard operations while maintaining uniform coverage. It also minimizes visual interference from mist, enhancing operational reliability and precision.
 |
 |
| Category | Feature | Specification |
|
Spraying System
|
Model | LS100 |
| Dimensions | 880 mm × 870 mm × 810 mm (spray rod folded); 1020 mm × 1930 mm × 810 mm (spray rod unfolded) | |
|
Spray Tank
|
Material | HDPE |
| Volume | 100 L | |
| Operating Payload | 100 kg | |
|
Sprinklers
|
Model | LX07550SX (Standard Nozzle) / LX09550SX (Optional Mist Nozzle) |
| Quantity | 2 (Standard) / 4 (Optional) | |
| Nozzle Distance | 1834 mm (Two Nozzles / Four Nozzles Outermost) | |
| Droplet Size | 50 – 500 μm | |
| Effective Spray Width | 5 – 11 m | |
|
Delivery Pumps
|
Type | Impeller Pump (Magnetic Drive) |
| Quantity | 2 | |
| Max Flow Rate | 30 L/min (Standard 2 nozzles), 40 L/min (Optional 4 nozzles) |
