Description
DJI T100 Features

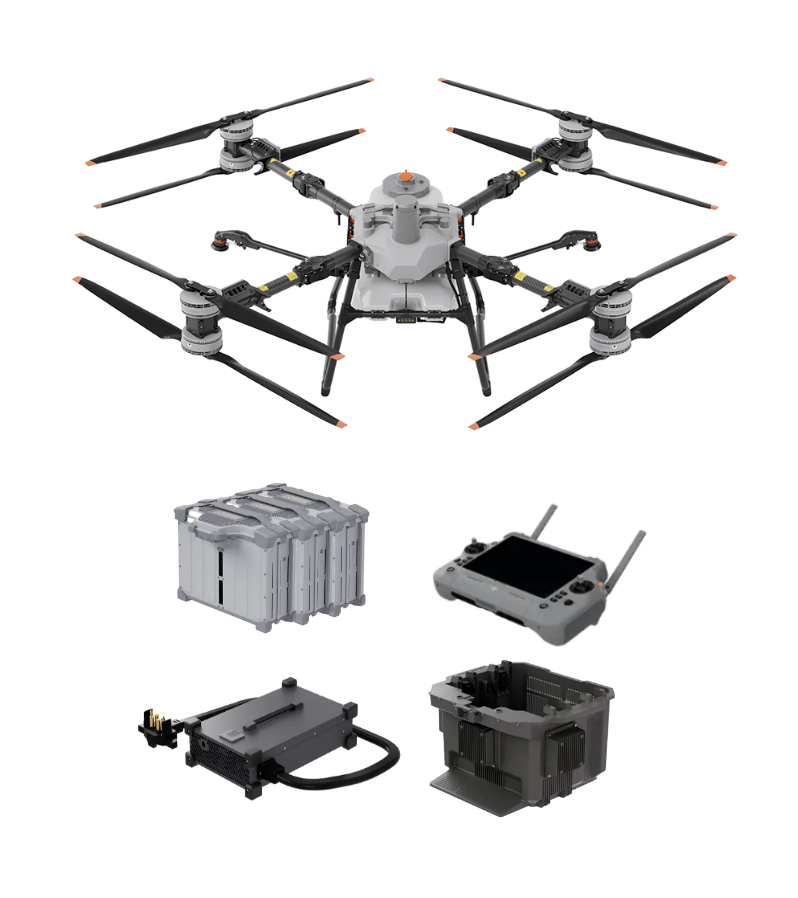

The DJI AGRAS T100 Agricultural Drone, a groundbreaking creation twelve years in the making, boasts a maximum payload of 100 kg[1]. Its operational efficiency is doubled, supporting multiple application scenarios, including spraying, spreading, and lifting tasks. Featuring industry-leading safety systems[2] and advanced algorithms, it delivers unparalleled safety performance and an intelligent operational experience.
DJI Agras T100’s specifications
| Category | Item | Value |
|
Weight
|
Spraying (2 nozzles) | 75 kg |
| Spraying (4 nozzles) | 77 kg | |
| Spreading system | 75 kg | |
| Lifting system | 65 kg | |
| Dual-battery lifting system | 90 kg | |
|
Max Takeoff Weight
|
Spraying (2 nozzles) | 175 kg |
| Spraying (4 nozzles) | 177 kg | |
| Spreading system | 175 kg | |
| Lifting system | 165 kg | |
| Dual-battery lifting system | 170 kg | |
| Max Diagonal Wheelbase | Diagonal | 2330 mm |
|
Dimensions
|
Unfolded (arms+propellers) | 3220 × 3224 × 975 mm |
| Arms unfolded, propellers folded | 1820 × 1840 × 975 mm | |
| Folded (arms+propellers) | 1105 × 1265 × 975 mm | |
|
Hovering Accuracy
|
RTK Enabled | ±10 cm (horizontal), ±10 cm (vertical) |
| RTK Not Enabled | ±0.6 m (horizontal), ±0.3 m (vertical) | |
| Max Configurable Flight Radius | Radius | 2 km |
| Operating Temperature | Range | 0 °C to 40 °C |
| Max Wind Resistance | Resistance | <6 m/s |
As the lowest accident rate sales team in Canada, we strongly recommend you take our training courses before you fly,
Details of the DJI T100’s system.
- Spraying System : The T100 comes equipped with a 100 L tank and dual atomizing centrifugal sprinklers, enabling faster flight speeds, wider spray coverage, and higher operation efficiency for large-scale field applications. Orchard users can choose an optional mist sprinkler set, which upgrades flow rates and atomization effects to penetrate dense canopies and reach the undersides of leaves on tall, thickly-canopied trees, ensuring outstanding versatility and performance across various agricultural tasks.
 |
 |
Spreading System: The T100 Spreading System has been fully upgraded, with double the load capacity, and a 270%[7] increase in flow rate. Equipped with a brand-new screw feeder, it is suitable for various granulars and can handle spreading scenarios in large fields, orchards, aquaculture, and more.
 |
 |
2. Lift System: The DJI T100 transforms into a transport solution. With a lifting maximum capacity of 100 kg[5]. Features like auto balance control , weight detection, and automatic navigation to loading and unloading points make it adaptable to various agricultural transport scenarios.
 |
 |
 |
 |
3. DJI T100 Battery: The DB2160 Intelligent Flight Battery has an increased capacity and lighter built, offering ultra fast charging while reducing fuel consumption. Its innovative triple air-channel cooling system disperses heat through airflow, ensuring safe and stable energy management with efficient cooling even during flight.
 |
 |
4. Safety Control System: DJI T100 is equipped with advanced technologies, including a new LiDAR, millimeter-wave radar, and a Penta-Vision system[12]. These features enable comprehensive environmental awareness, allowing for precise obstacle detection.
 |
 |
