Equipped with Matrice 4D or Matrice 4TD high-performance drones, DJI Dock 3 empowers 24/7 remote operations and, for the first time, supports mobile vehicle-mounted deployment, effortlessly adapting to various environments.
The drones utilize the same cameras as the Matrice 4 Series but offer improved flight and protection performance.
They can also pair with DJI RC Plus 2 Enterprise for standalone use. With DJI FlightHub 2‘s intelligent features, pilots can significantly cut down on operational time and labor costs, maximizing efficiency and savings.
Equipped with Matrice 4D or Matrice 4TD high-performance drones, DJI Dock 3 empowers 24/7 remote operations and, for the first time, supports mobile vehicle-mounted deployment, effortlessly adapting to various environments.
The drones utilize the same cameras as the Matrice 4 Series but offer improved flight and protection performance.
They can also pair with DJI RC Plus 2 Enterprise for standalone use. With DJI FlightHub 2‘s intelligent features, pilots can significantly cut down on operational time and labor costs, maximizing efficiency and savings.

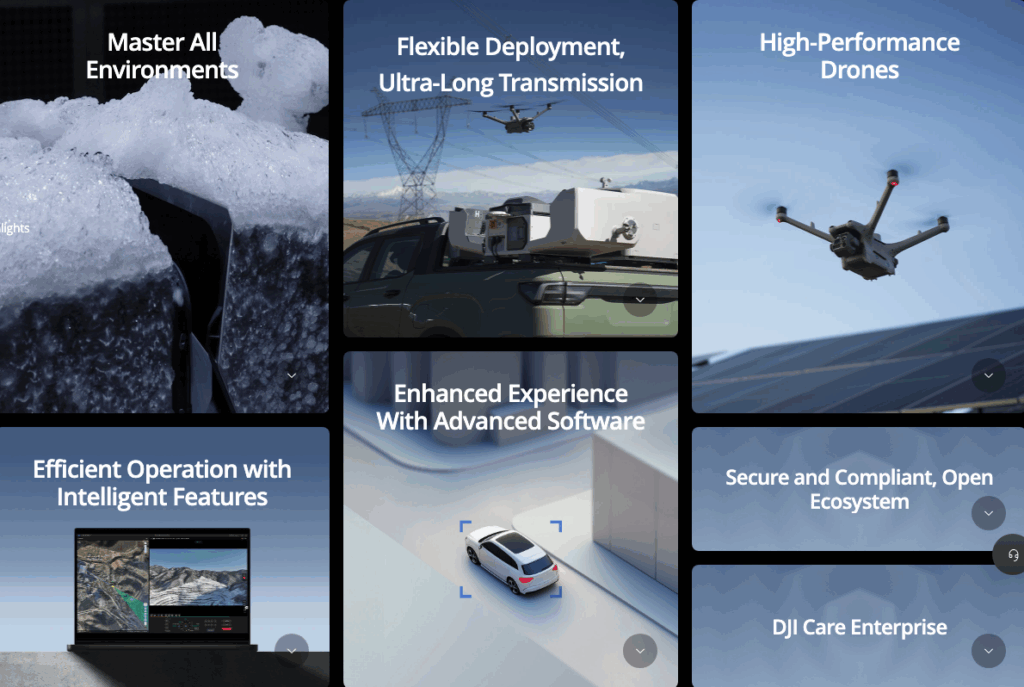

Features
Master All Environments
20° to 50° C (-4° to 122° F ) operating temperature Drones are standard equipped with low-noise anti-ice propellers In winds as strong as 12 m/s, the drones can achieve stable takeoff and landing DJI Dock 3: IP56 Matrice 4D and 4TD: IP55
Flexible Deployment, Ultra-Long Transmission
The new D-RTK 3 relay station allows for flexible site selection of Dock 3. DJI Dock 3 is DJI’s first Dock to support mobile vehicle-mounted deployment. Two docks can be deployed on a single vehicle simultaneously, achieving a significant efficiency boost.
High-Performance Drones
54-min forward flying | 47-min hovering New Obstacle Sensing Module provides precise wire-level obstacle avoidance Excels in low-light environments with the new Night Scene mode Matrice 4TD additionally supports UHR Infrared Image mode and a new NIR auxiliary light Upgraded medium tele camera, tele camera and foreground stabilization High-Precision Surveying New airborne relay for mountainous terrains
Efficient Operation With Intelligent Features
The new automated flight route allows the drone to automatically detect and capture images or videos of the subject and send notifications to the operators. The new intelligent change detection feature enables efficient periodical analysis of changes in an area.
Enhanced Experience With Advanced Software
Take off quickly Low-latency live view Transmit while flying, with model generated rapidly Smart Track
What’s in the box?
- DJI Dock 3
Specs
Total Weight: 55 kg (without aircraft)
The actual product weight may vary due to differences in batch materials and external factors. Dimensions Dock Cover Opened: 1760×745×485 mm (L×W×H)
Dock Cover Closed: 640×745×770 mm (L×W×H)
All data includes the RTK module width (160 mm), wind speed gauge height (145 mm), and mounting base brackets (58 mm). Input Voltage: 100-240 V (AC), 50/60 Hz Input Power: Max 800 W Operating Temperature: -30° to 50° C (-22° to 122° F) Ingress Protection Rating: IP56 Number of Drones Accommodated: 1 Max Allowable Landing Wind Speed: 12 m/s Max Operating Altitude: 4500 m Receiving Frequency of RTK Base Station Satellite: Simultaneously receive: GPS: L1 C/A, L2, L5 / BeiDou: B1l, B2l, B3l, B2a, B2b, B1C / GLONASS: F1, F2 / Galileo: E1, E5a, E5b, E6 / QZSS: L1, L2, L5 Positioning Accuracy of RTK Base Station: Horizontal: 1 cm + 1 ppm (RMS) / Vertical: 2 cm + 1 ppm (RMS)
Charging Performance
Output Voltage: 35 V DC Charging Time: 27 minutes
The data was measured when charging the aircraft (when powered off) from 15% to 95% in a 25° C (77° F) environment.
Video Transmission
Operating Frequency: 2.400-2.4835 GHz / 5.150-5.250 GHz (CE: 5.170-5.250 GHz) / 5.725-5.850 GHz
The supported operating frequency bands and their corresponding availability vary by country/region. For details, please refer to local laws and regulations. Antenna: Built-in 9 antennas, 2T4R, supports intelligent switching Transmitter Power (EIRP): 2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC) / 5.2 GHz (CE: 5.170-5.250 GHz): < 23 dBm (FCC/CE) / 5.8 GHz: < 33 dBm (FCC); < 14 dBm (CE); < 30 dBm (SRRC)
Air Conditioning System
Operating Voltage: 48 V DC Air Conditioning Type: Compressor-based air conditioning
Backup Battery
Battery Capacity: 12 Ah Output Voltage: 12 V Battery Type: Lead-acid battery Battery Life: > 4 hours
Measured with a fully charged backup battery in a 25° C (77° F) environment. After a power outage, the dock does not support functions like aircraft charging, air conditioning operation, dock cover heating, and wind speed gauge heating. Please restore power promptly.
Network Access
Ethernet Access: 10/100/1000Mbps adaptive Ethernet port 4G Access: Requires DJI Cellular Dongle 2
Sold separately. This service is not available in some countries and regions. Please consult your local dealer for details.
Sensor
Wind Speed Sensor: Supported Rainfall Sensor: Supported Ambient Temperature Sensor: Supported Water Immersion Sensor: Supported In-Cabin Temperature Sensor: Supported In-Cabin Humidity Sensor: Supported
Security Camera (External):
Resolution: 1920×1080 Field of View (FOV): 151° Auxiliary Light: Auxiliary White Light
Security Camera (Internal)
Resolution: 1920×1080 FOV: 151° Auxiliary Light: Auxiliary White Light
Lightning Protection
AC Power Port: 20 kA (rated value), meets EN 61643-11 Type 2 and IEC 61643-1 Class Ⅱ protection level requirements Ethernet Port: 10 kA (Itotal)，meets EN/IEC 61643-21 Category C protection level requirements
Supported Software
Applications: DJI Enterprise app (used with Android phones for deployment and commissioning) Cloud Platform: FlightHub 2 / FlightHub 2 On-Premises Version / FlightHub 2 FlightHub Sync / DJI Cloud API
Expansion Capability
Edge Computing: Supports data communication with external switches
